BLUF: There are two (2) different Lombardini engine access door NSNs, so be sure to check your specific M900-series fuel tanker model before you order one.
Photo by Sgt. James Geelen
Maintainers, there are two (2) different Lombardini engine access door NSNs for M900-series fuel tankers. You’ll want to make sure that you verify the M900-series fuel tanker model, and then use the correct engine access door NSN for that model.
Guidance for M967A1, M969A1 and M969A2 Fuel Tankers

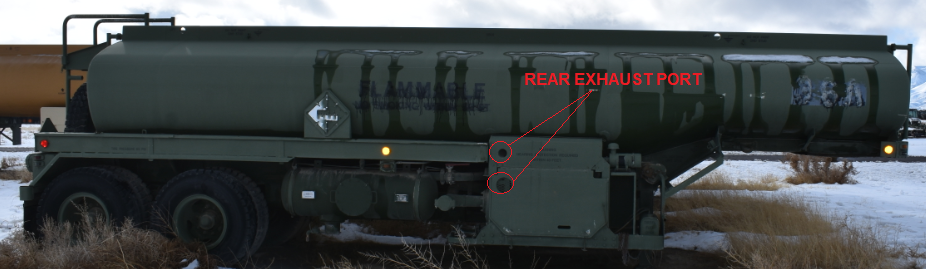

Quickly ID these models by the exhaust ports
on and above fuel tanker engine access door
For M967A1, M969A1 and M969A2 fuel tankers, the engine access door isn’t shown or listed in TM 9-2330-339-23P (Dec 15).

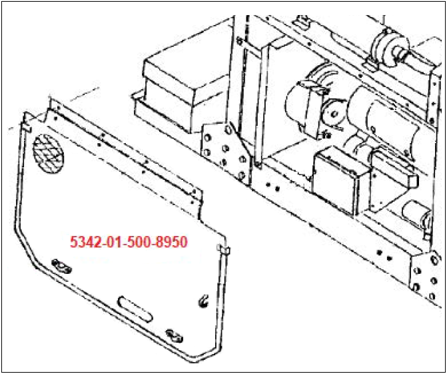

You can get an engine access door assembly with NSN 5342-01-500-8950 for about $736. The assembly comes with all the parts already installed on the door, including the seal, as shown below:
Engine access door assembly
Guidance for M967A2 and M969A3 Fuel Tankers

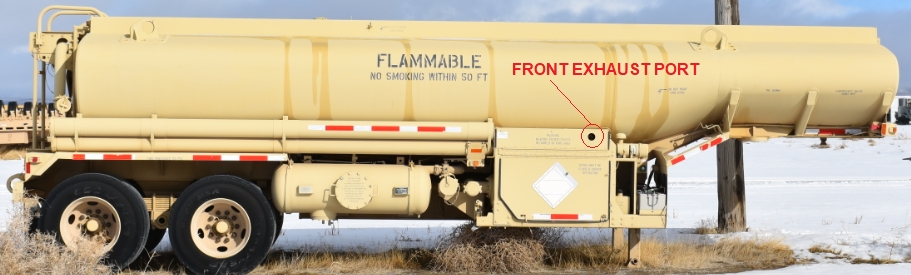

Quickly ID these models by the exhaust port above engine access door
For M967A2 and M969A3 fuel tankers, get an engine access door using NSN 4350-01-504-6391 for about $878.
Note that this NSN brings only the engine access door and not an assembly, so you may need to order other parts, like the seal. Be sure to refer to TM 9-2330-339-23P (Dec 15).

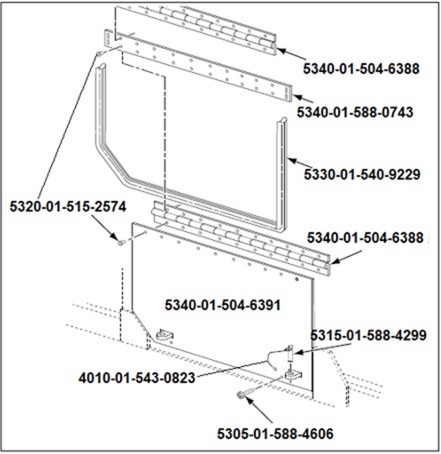

Here are additional NSNs for engine access door parts:
Parts not included with engine access door, NSN 5340-01-504-6391
| Parts not included with engine access door, NSN 5340-01-504-6391 |
| Nomenclature |
NSN |
| Engine access door |
5340-01-504-6391 |
| Hinge, butt |
5340-01-504-6388 |
| Mounting, bracket |
5340-01-588-0743 |
| Seal |
5330-01-540-9229 |
| Rivet |
5320-01-515-2574 |
| Quick release pin |
5315-01-588-4299 |
| Wire rope |
4010-01-543-0823 |
| Machine screw |
5305-01-588-4606 |
